Mixing & Dosing

1：Convenient to clean and change screen.

2：Automatically filters out any unwanted materials.

3: Stainless-steel to prevent from rusting.

4：Minimal and easy maintenance.

5：Customizable mesh size.

Performance characteristics

Easy and fast screen replacement and cleaning.

The impurities and coarse materials are automatically discharged, and the operation can be automated.

The parts in contact with the raw materials are made of stainless steel material, ensuring the purity of the raw materials.

Less malfunctions, easy maintenance, and convenient maintenance.

The machine is lightweight and equipped with casters on the base, making it easy to move and place.

VLH-1300 does not come with a feed hopper and is suitable for use in pelletizers.

The mesh size can be customized according to customer requirements, in addition to standard configurations.

WSVL Linear Vibrating Screen (1).webp

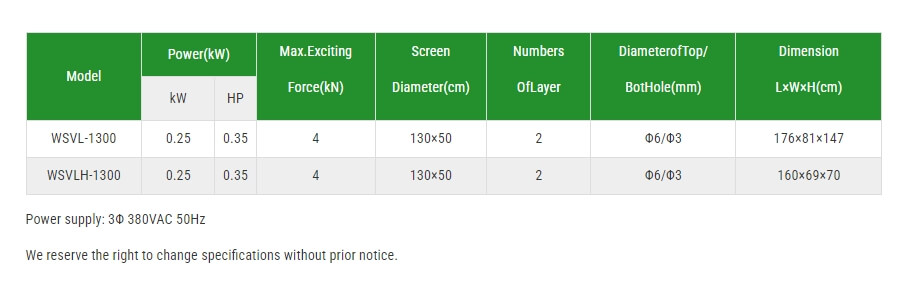

Technical Parameter

Model	Power(kW)		Maximum excitation force（kN）	Screen size（cm）	Number of sieve layers	Upper/Lower Screen Aperture（mm）	Overall dimensions L×W×H（cm）
Model	kW	HP	Maximum excitation force（kN）	Screen size（cm）	Number of sieve layers	Upper/Lower Screen Aperture（mm）	Overall dimensions L×W×H（cm）
WSVL-1300	0.25	1/3	4	130×50	2	Φ6/ Φ3	176×81×147
WSVLH-1300	0.25	1/3	4	130×50	2	Φ6/ Φ3	160×69×70

Power supply: 3 Φ 380VAC 50Hz;

The product specifications are subject to change without prior notice.
