Feeding & Conveying

Feeding & Conveying

Feeding & Conveying

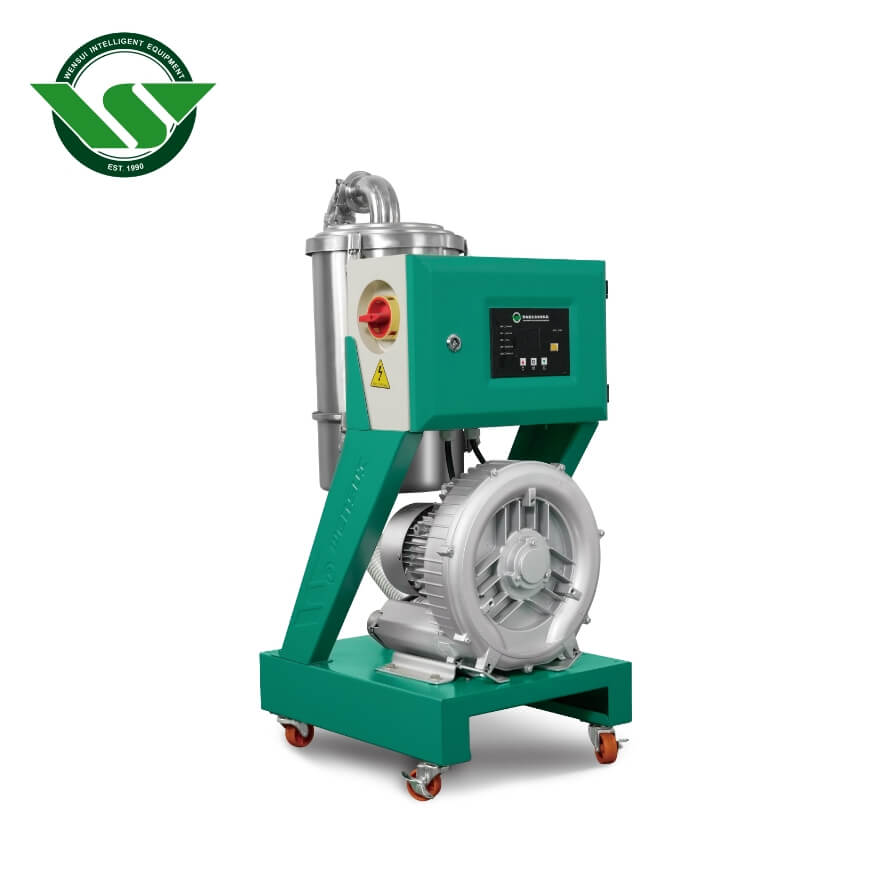

WSAL-1.5HP/2HP Vacuum Separate-hopper Autoloader

1:The main loader and its vacuum hopper are designed to be separated for safety reasons and long-distance conveying.

2:Stainless-steel material

3:Designed with alarms for overloading and material shortage.

4:High-speed brush motor for a smaller footprint and strong suction

5:High-pressure blower for less noise and longer durability.

6:Equipped with pump reverse cleaning function.

7:CE standard certified.


  • Performance characteristics

    The host and hopper are designed separately, ensuring safety and simplicity.

    Independent filtration device for easy removal of accumulated dust.

    Stainless steel hopper.

    Overload and shortage alarm.

    Adopting an induction high-pressure fan, with low noise and long service life, it is suitable for conveying new and recycled materials.

    Equipped with reverse automatic dust removal function.

    This series of products has passed the European CE standard certification.

    WSAL-1.5HP2HP Separate-hopper Autoloader (4).pngWSAL-1.5HP2HP Separate-hopper Autoloader (1).pngWSAL-1.5HP2HP Separate-hopper Autoloader (2).pngWSAL-1.5HP2HP Separate-hopper Autoloader (3).png

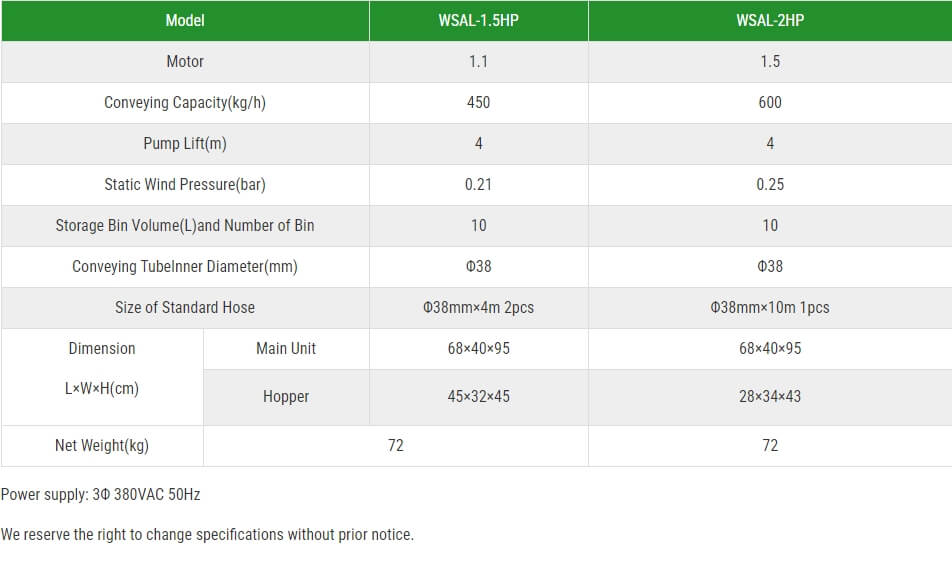

    Technical Parameter

    ModelWSAL-1.5HPWSAL-2HP
    Motor(kw)1.11.5
    Conveying capacity(kg/h)450600
    Suction head(m)44
    Static wind pressure(bar)0.210.25
    Storage bucket capacity(L)1010
    Inner diameter of feeding pipe(mm)Φ38Φ38
    Delivery pipeΦ38mm×4m 2pcsΦ38mm×10m 1pcs
    Overall dimensions L×W×H(cm)host68×40×9568×40×95
    hopper45×32×4528×34×43
    Net weight (kg)7272

    Power supply: 3 Φ  380VAC 50Hz

    The product specifications are subject to change without prior notice.

  • 1:The main loader and its vacuum hopper are designed to be separated for safety reasons and long-distance conveying.

    2:Stainless-steel material

    3:Designed with alarms for overloading and material shortage.

    4:High-speed brush motor for a smaller footprint and strong suction

    5:High-pressure blower for less noise and longer durability.

    6:Equipped with pump reverse cleaning function.

    7:CE standard certified.
