Drying & Dehumidifying

Drying & Dehumidifying

Drying & Dehumidifying

VD Desiccant Rotor Reusable Honeycomb Dehumidifier

1:P.I.D. temperature control.

2:LCD display and keyboard.

3:Easy to operate system

4:Double-condenser provides lower return air temperature and dew point below -40°C (-50°C is available with chilling water).


Optional parts: PLC control and dew-point monitor.


  • Performance characteristics

    The drying and dehumidification control adopts microcomputer control and P.I.D. temperature control.

    LCD display, button operation.

    Optional dew point meter.

    The operation interface is simple and easy to understand, and the text display of fault problems is clear at a glance.

    Adopting a dual cooler structure to ensure a lower return air temperature, the honeycomb can reach a dew point below -40 ℃, and can even reach a dew point of -50 ℃ or even lower when equipped with enhanced chilled water.

    VD Desiccant Rotor Dehumidifier (1).webpVD Desiccant Rotor Dehumidifier (1).pngVD Desiccant Rotor Dehumidifier (2).png

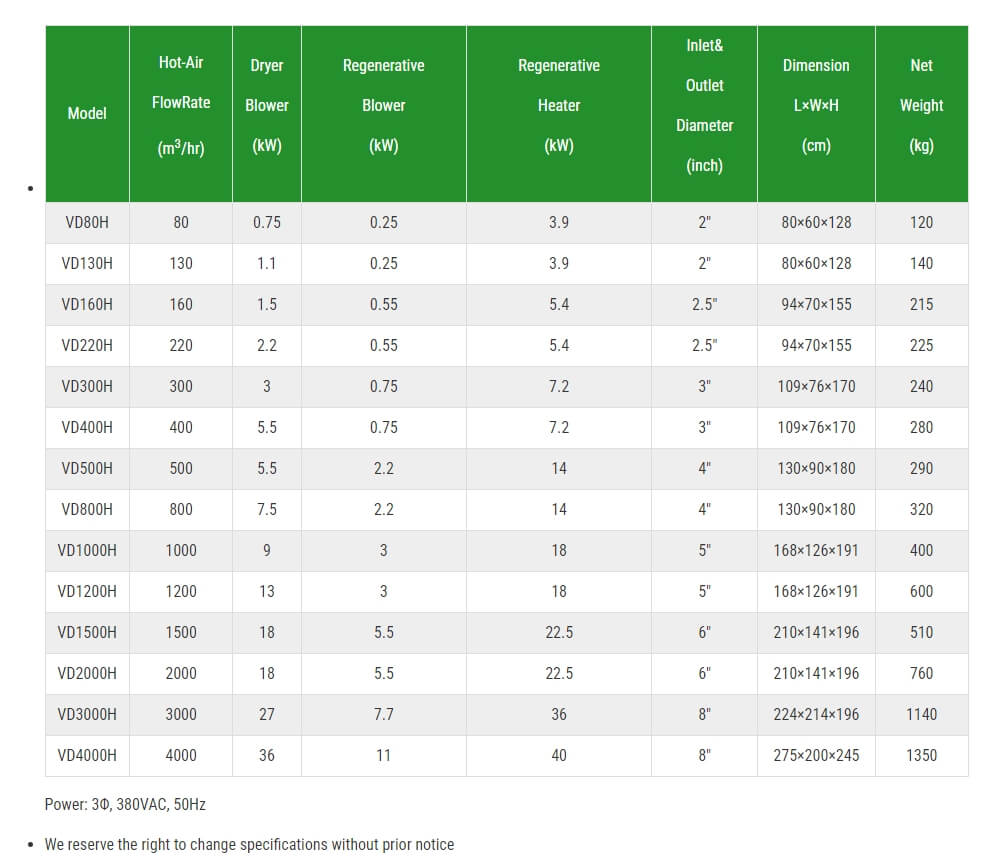

    Technical Parameter

    ModelDry air volume（m3/hr)Drying fan power（kW)Regenerative fan power（kW)Regenerative electric heating power（kW)Inlet and outlet pipe diameter（inch)Overall dimensionsL×W×H (cm)Net Weight (kg)
    VD80H800.750.253.92″80×60×128120
    VD130H1301.10.253.92″80×60×128140
    VD160H1601.50.555.42.5″94×70×155215
    VD220H2202.20.555.42.5″94×70×155225
    VD300H30030.757.23″109×76×170240
    VD400H4005.50.757.23″109×76×170280
    VD500H5005.52.2144″130×90×180290
    VD800H8007.52.2144″130×90×180320
    VD1000H100093185″168×126×191400
    VD1200H1200133185″168×126×191600
    VD1500H1500185.522.56″210×141×196510
    VD2000H2000185.522.56″210×141×196760
    VD3000H3000277.7368″224×214×1961140
    VD4000H40003611408″275×200×2451350

    Power supply: 3 Φ  380VAC 50Hz;

    The product specifications are subject to change without prior notice.


  • 1:P.I.D. temperature control.

    2:LCD display and keyboard.

    3:Easy to operate system

    4:Double-condenser provides lower return air temperature and dew point below -40°C (-50°C is available with chilling water).


    Optional parts: PLC control and dew-point monitor.
