Granulation & Recycling

Granulation & Recycling

Granulation & Recycling

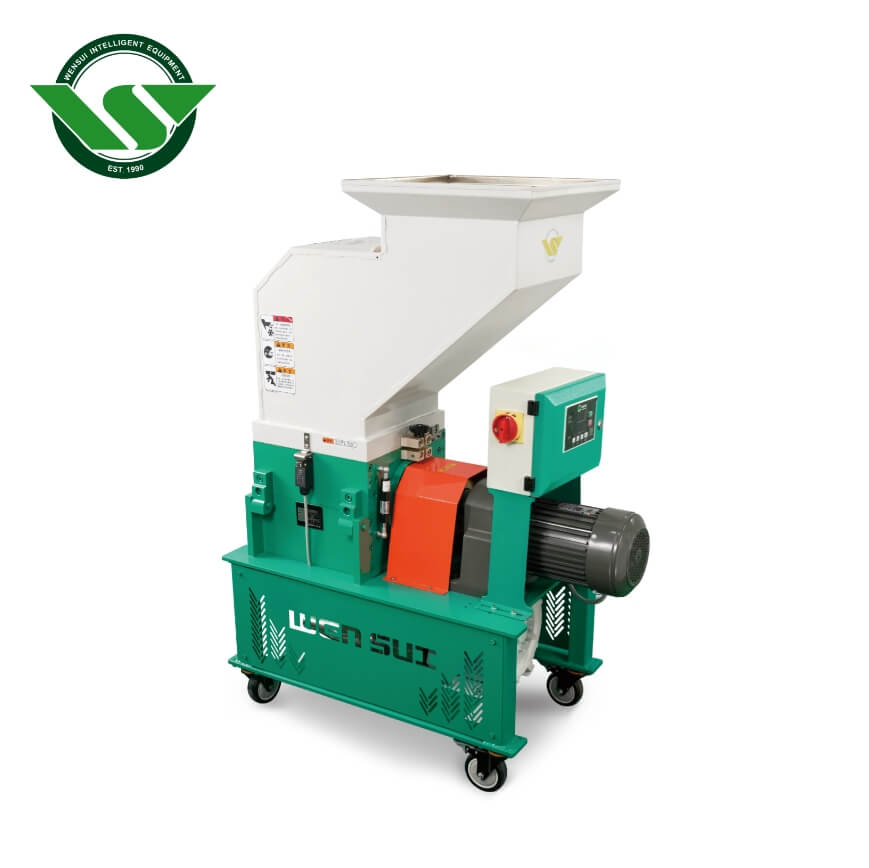

WSGO Lowest-speed Beside-the-press Granulator

1:Screenless design with minimal powder and dust.

2:Gear reducer and shaft are connected by a coupling for smooth operation and low noise.

3:Cleaning simple.

4:Main power isolator for safety.

5:Timer allows the machine to start or stop automatically.

6:Hopper and autoloader are standard configuration


  • Performance characteristics

    No screen design, uniform particles, less powder, and no dust pollution.

    Adopting a Taiwanese gear reducer, with high torque, excellent quality, and long service life.

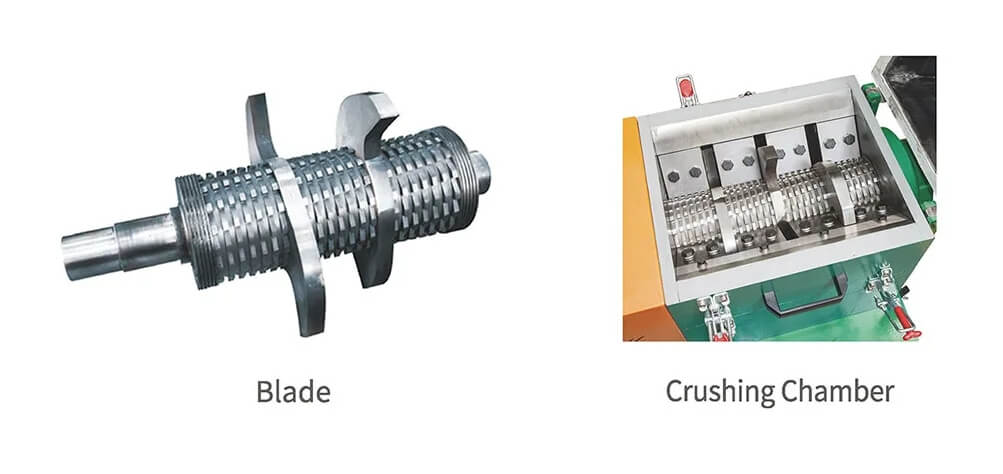

    The integrated design of toothed cylindrical moving claw knife and claw shaped moving knife allows for synchronous coarse and fine crushing.

    The gear reducer is connected to the main shaft through a coupling, ensuring smooth operation and low noise during crushing.

    The hopper and box are easy to open and clean.

    Equipped with a main power isolation switch for high safety.

    Equipped with a cycle timer control, it can automatically run and stop the machine in a cycle, saving electricity.

    Standard configuration with suction hopper for suction machine.

    WVGO Low-speed Granulator (4).pngWVGO Low-speed Granulator (1).pngWVGO Low-speed Granulator (2).pngWVGO Low-speed Granulator (3).png

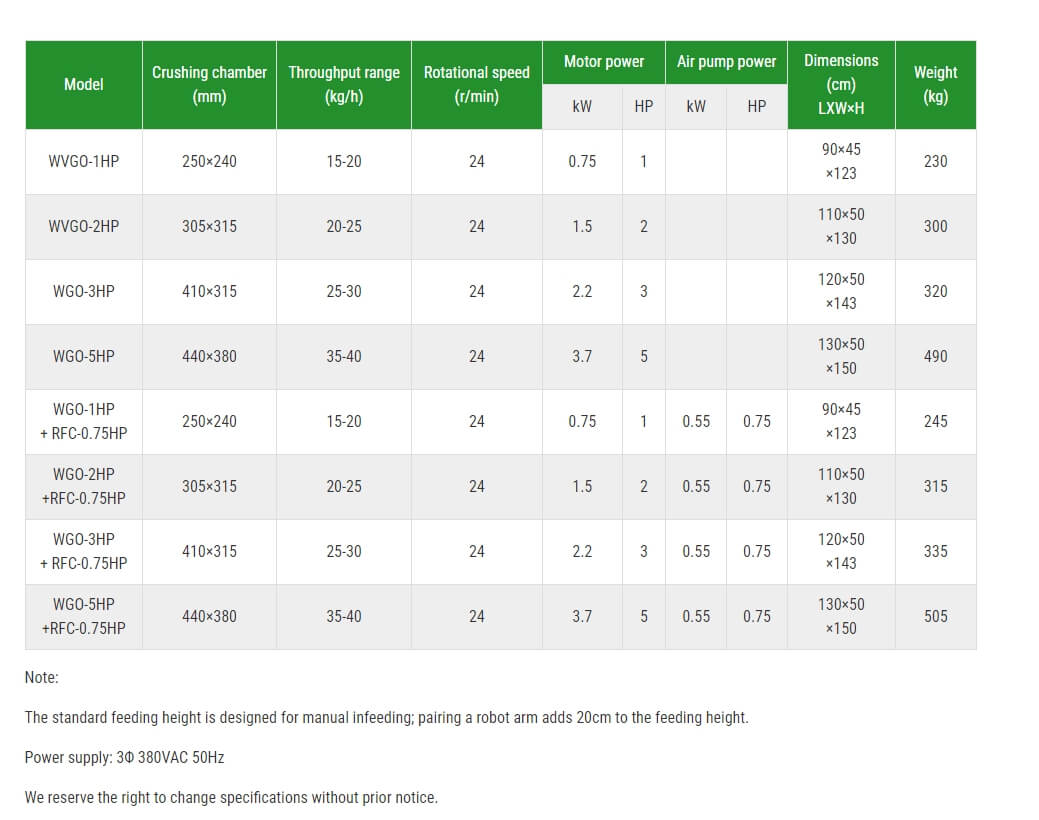

    Technical Parameter

    ModelCrushing diameter (mm)Crushing capacity (kg/h)Speed(r/min)Motor powerAir pump powerOverall dimensions(cm) LXWXHNet weight(kg)
    kwHPkWHP
    WVGO-1HP250x24015-20240.751//90x45x123230
    WVGO-2HP305x31520-25241.52//110x50x130300
    WVGO-3HP410x31525-30242.23//120x50x143320
    WVGO-5HP440x38035-40243.75//130x50x150490

    WVGO-1HP+RFC-0.75HP

    250x24015-20240.7510.550.7590x45x123245

    WVGO-2HP+RFC-0.75HP

    305x31520-25241.520.550.75110x50x130315

    WVGO-3HP+RFC-0.75HP

    410x31525-30242.230.550.75120x50x143335

    WVGO-5HP+RFC-0.75HP

    440x38035-40243.750.550.75130x50x150505

    Note: The standard height is equipped with a manual feeding port, and the height of the feeding port with a robotic arm is increased by 20cm;

    Power supply: 3380VAC 50Hz;

    The product specifications are subject to change without prior notice.


  • 1:Screenless design with minimal powder and dust.

    2:Gear reducer and shaft are connected by a coupling for smooth operation and low noise.

    3:Cleaning simple.

    4:Main power isolator for safety.

    5:Timer allows the machine to start or stop automatically.

    6:Hopper and autoloader are standard configuration
