Automation System

Automation System

Automation System

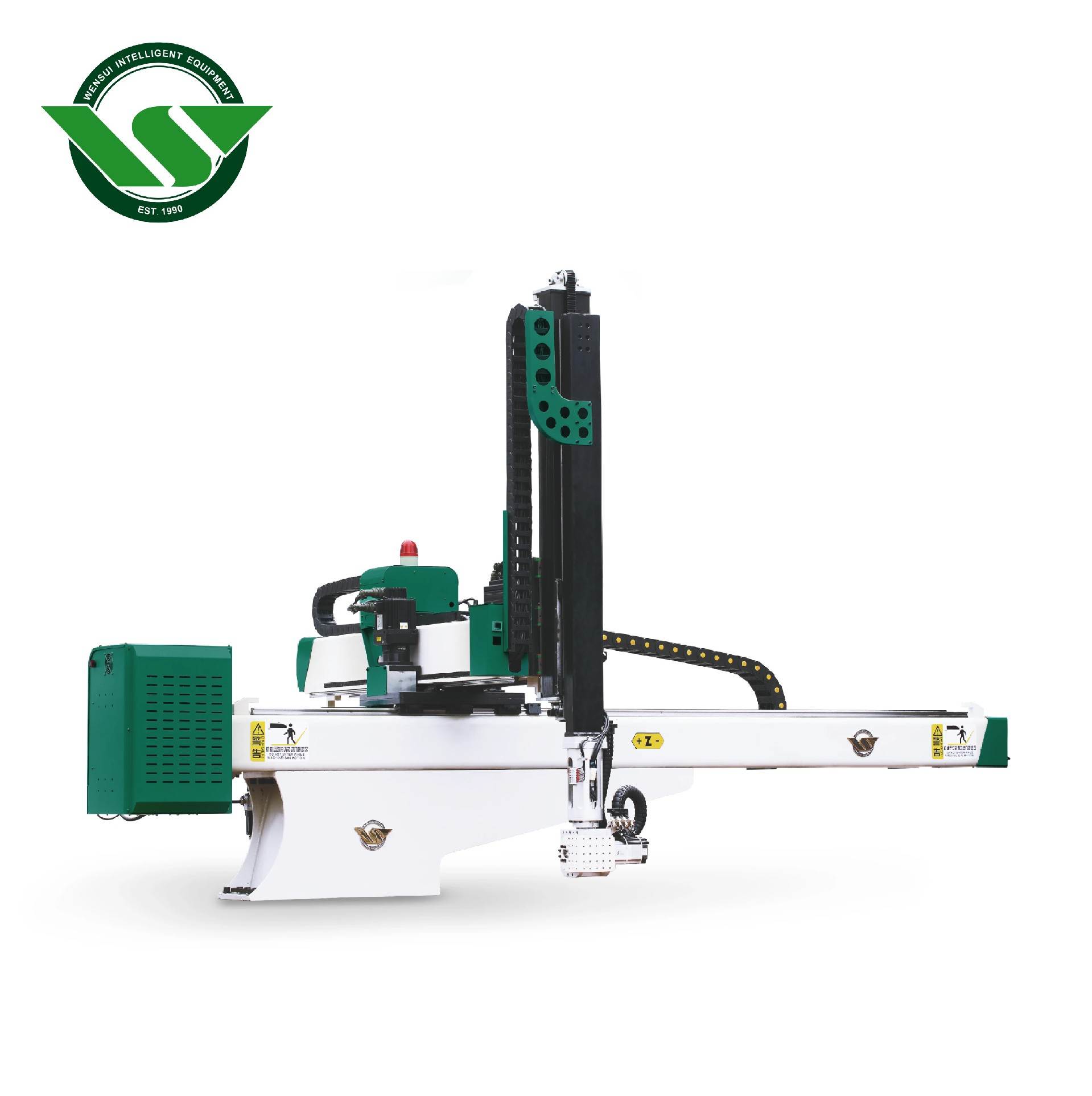

H Series 3-Axis Collaborative Servo Robot Arm

1:the x-axis and the z-axis remain the same, the crosswise will act with the arm together.

2:3-axis Servo Series.

3:Suitable for heavy-duty injection molding machines with high complexity.

4:Optional parts: B+C Servo Axis (joint robot) or pneumatic C axis (90 degrees)


  • Performance characteristics

    Characteristics: The relative position of the pull and arm remains unchanged in the X and Z axes, which means that the pull action will drive the arm to move together.

    Drive: Three axis H series.

    Applicable: Injection molding machines have a relatively large tonnage and complex movements.

    Optional accessories: B+C servo axis (joint manipulator), or pneumatic C-axis (90 degrees).

    H Robot arm (1).jpg

    H Robot arm (5).png

    H Robot arm (1).png

    H Robot arm (2).png

    H Robot arm (3).png

    H Robot arm (4).png

    Subject to change without prior notice.


  • 1:the x-axis and the z-axis remain the same, the crosswise will act with the arm together.

    2:3-axis Servo Series.

    3:Suitable for heavy-duty injection molding machines with high complexity.

    4:Optional parts: B+C Servo Axis (joint robot) or pneumatic C axis (90 degrees)
